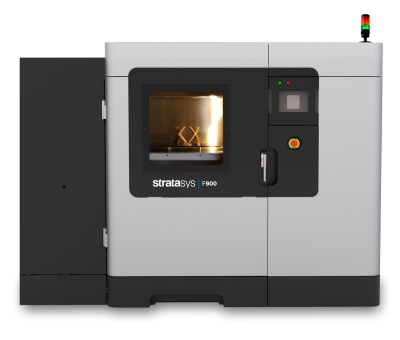

Fortus 900mc/F900
The Stratasys Fortus 900mc/F900 3D printing system incorporates the latest in innovative technologies to provide precision prototypes from a CAD design. Stratasys’ Fused Deposition Modeling (FDM) technology provides prototype parts, including internal features, that can be used to field-test form, fit, and function.
The Stratasys Fortus 900mc/F900 3D printing system has a vacuum platen is adapted for use with two build sheet sizes; The small sheet is 16 in. (40.6 cm) X 18.5 in. (47.0 cm) X 0.02 in. (0.05 cm) thick, and the large sheet is 26 in. (66.0 cm) X 38 in. (96.5 cm) X 0.02 in. (0.05 cm) thick. The envelope size is 36 in. (91.4 cm) wide X 36 in. high (91.4 cm) X 24 in. (60.96 cm) deep. The printer has four material bays; two for model and two for support.
- 50 Hz or 60 Hz
- 230VAC
- 40 Amp circuit
- 34 Amp full load current on all three phases
AC Power Requirements
- Required for communication and file transfer functions.
- Category 5 or better
- 10/100 Base T Ethernet, RJ45 connector.
LAN Requirements
