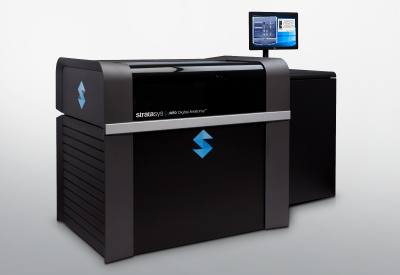

J850 Digital Anatomy

Thumbnail J850 DAP Support

The Stratasys J850 Digital Anatomy 3D printers allow you to streamline and economize the process of producing models from different materials on the same build tray, in the same print job. With the J850 Digital Anatomy 3D printers you can designate colors for parts of a model at the design stage (with CAD software) and save the model as a VRML file, and have the model print with the desired colors.

The Stratasys J850 Digital Anatomy 3D printer has a build area of 490 x 390 x 200 mm (19.3 x 15.35 x 7.8 in).

3rd Party (Medtronic) Testing of Digital Anatomy Materials

Medtronic performed tests on the Digital Anatomy materials to determine how effectively they replicated organic myocardium (heart) tissue. Results were compared to porcine myocardium, which closely mimics human tissue.

Read the full report at this link.

    AC Power Requirements

  • 100–120 VAC, 50–60 Hz, 13.5 A, 1 phase
    Or
    220–240 VAC, 50–60 Hz, 7 A, 1 phase

    LAN Requirements

  • TCP/IP







    Materials

  • GelMatrix™ (FLG110)
  • TissueMatrix™ (MED310)
  • BoneMatrix™ (RGD516)
Getting Started - Digital Anatomy Creator

Blood Vessels Cleaning
