This chapter describes various maintenance tasks that will routinely need to be performed on the F120 Printer.
|
|
NOTE: When updating the printer’s controller software version, the printer must be in an idle state. |
Controller Software can be updated using one of the following three methods:
•Installing from a USB Flash drive that contains the software update file
•Navigating to the update file on your workstation PC; After placing the printer into upgrade mode (see “Update Software” (page 56)), navigate to and install the upgrade file from its saved location on your workstation PC.
•Selecting push notifications automatically sent via GrabCAD Print;
After receiving a notification from GrabCAD Print that a software upgrade is available, follow the on-screen prompts and instructions to install the upgrade.
You have the option of updating Controller Software via any of these methods; however, the USB Flash drive method is the preferred method.
|
|
Updating Controller Software will erase all job files from the Job Queue (files within the Sample Queue (Internal Storage) will be retained). After completing the software upgrade, you will need to resend jobs to the printer. |
1.Save the software upgrade file to a USB flash drive.
2.Insert the USB flash drive into one of the available USB ports on the F120 printer.
3.On the printer touchscreen, open the Tools page by pressing the Tools button within the Navigation Menu.

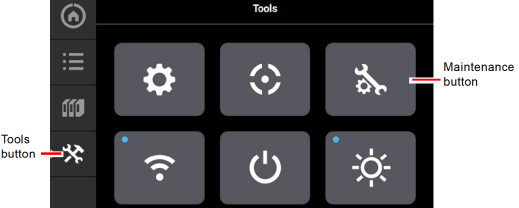

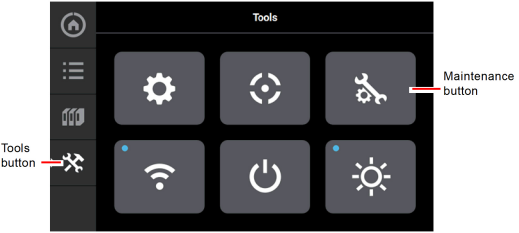

Figure 1: Tools Page

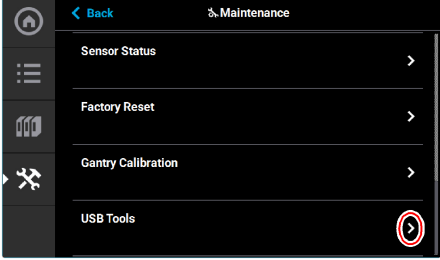

4.Open the Maintenance page by pressing the Maintenance button within the Tools page.
5.From the Maintenance Page, select USB Tools and then select UPG Install.

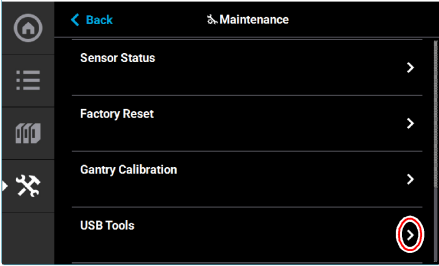

Figure 2: USB Tools
6.Select USB.

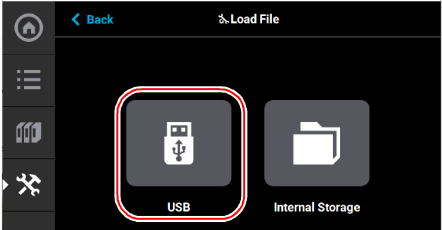

Figure 3: Load File
7.Navigate to and select the upgrade file from its saved location on the USB drive.

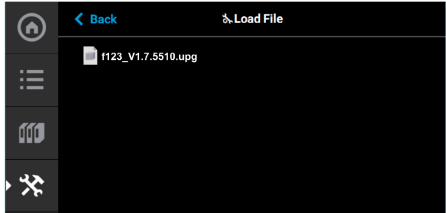

Figure 4: Upgrade File Location
8.The upgrade file will install. The screen will display the status until the upgrade is complete.

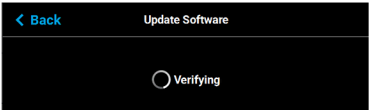

Figure 5: Upgrade Status
|
|
Updating Controller Software will erase all job files from the Job Queue (files within the Internal Storage will be retained). After completing the software upgrade, you will need to resend jobs to the printer. |
To update Controller Software via GrabCAD Print, navigate to http://help.grabcad.com/article/196-printer-firmware-management and follow the procedure for “Updating the printer’s firmware”.
Exporting System Configuration (.CFG) File
If your system is receiving fault determination codes, you may need to export a configuration (.cfg) file from your system to send to Customer Support. System configuration files can be exported using one of the following three methods:
•Saving to a USB Flash drive directly from the F120 printer
•Saving to a location on your workstation PC
•Saving via GrabCAD Print
You have the option of exporting system configuration files via any of these methods; however, the USB Flash drive method is the preferred method.
1.Insert the USB flash drive into one of the available USB ports on the F120 printer.
2.On the printer touchscreen, open the Tools page by pressing the Tools button within the Navigation Menu.
Figure 6: Tools Page
3.Open the Maintenance page by pressing the Maintenance button within the Tools page.
4.From the Maintenance Page, select USB Tools and then select CFG Save.

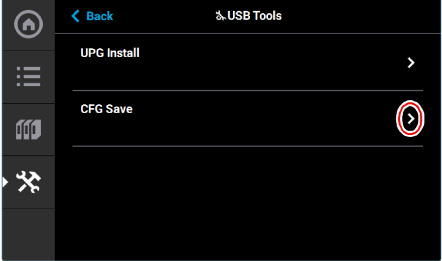

Figure 7: USB Tools
5.Select USB.

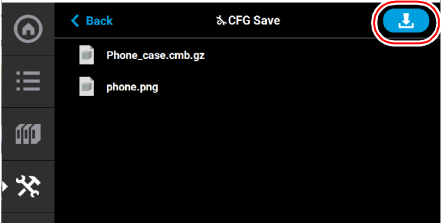

Figure 8: CFG Save
6.Navigate to a save file location on the USB drive and select the Download button.
Figure 9: Save File Location
7.The configuration file will download to the USB flash drive. Select Accept when the file download is complete.
Figure 10: Configuration File Saved
For detailed instructions on exporting a system configuration file navigate to:
http://help.grabcad.com/article/196-printer-firmware-management and follow the procedure for “Exporting the printer configuration”.
|
|
Warning: Hot Surface Hazard Always wear proper heat protective gloves and clothing when handling items inside the oven, as surfaces within the oven can be very hot. |
Maintenance tasks must be performed on a regular basis in order to maintain optimal system operation. Table 1 outlines the general maintenance schedule for the F120. Detailed instructions for each task make up the rest of this chapter.
Table 2 lists part numbers for various replacement consumable items. Use the part numbers listed in this table when ordering replacement parts from Stratasys or your regional Stratasys office.
|
Part Number |
Description |
|---|---|
|
123-00400 |
Model Head (standard) |
|
123-00400 |
Support Head (standard) |
|
123-00302 |
F170 substrate 1 box of 16 |
|
123-00305 |
Tip shield kit - 4 sets |
|
123-00306 |
2-pack of tip wipe assemblies (see “Clean/Inspect Tip Wipe Assemblies” (page 10)). |
|
|
Warning: Hot Surface Hazard Always wear proper heat protective gloves and clothing when handling items inside the oven, as surfaces within the oven can be very hot. |
The purge chute is designed to guide purged material debris from the tip wipe assemblies to the bottom of the oven chamber for disposal. Purged material debris then collects within the bottom of the oven chamber, beneath the platen. Do not allow excess material debris to accumulate in the oven chamber as this could cause damage to the printer. Clean the oven chamber on a weekly basis to remove build material debris and dust. A standard vacuum can be used to clean this area if needed. If excessive accumulation occurs vacuum the oven chamber as needed.
The steel platen provides the level surface on which parts are built (see Figure 7 (page 7) for platen overview). A substrate is securely affixed to the platen by the substrate ejection handle. If debris collects on the platen, it can adversely affect substrate adhesion.
1.Remove the substrate from the platen.
•Push down on the substrate ejection handle to release it from the platen.
•Slide the substrate from the platen.
2.Carefully remove purged material debris that have fallen into the openings of the platen.
•A standard vacuum can be used to clean the platen.
Clean/Inspect Tip Wipe Assemblies
The tip wipe assemblies should be cleaned once a month. While cleaning the assemblies, inspect the flicker/brush assemblies for wear and replace as necessary when wear is detected.
Once material is purged from a tip, the flicker portion of the tip wipe assembly passes across the tip’s opening, cutting purged material off in small segments. The brush portion of the tip wipe assembly then passes across the tip’s opening cleaning the tip and its tip shield. As a result, the flicker will wear at the location where the tip contacts its surface and eventually develop a notch large enough for the tip to completely pass through the flicker; a notched flicker cannot properly cut purging material. Similarly, material can become embedded within the bristles of the brush resulting in clumping; clumped bristles cannot properly clean a tip or its tip shield. The tip wipe assembly should be replaced once a significant notch develops within the flicker portion of the assembly or whenever bristle clumping (which cannot be removed with a brush) is apparent within the brush portion of the assembly. The tip wipe assembly is replaced as a single unit.
To clean the tip wipe assembly and inspect its components:
1.Ensure that the printer is stopped (idle) and is not building.
|
|
Caution: Depending on how long the oven has been allowed to cool, components may be hot. Wear the safety gloves provided in the Welcome Kit to perform all remaining steps. |
3.Remove the model side tip wipe assembly by lifting it upward until it clears its locating pins.

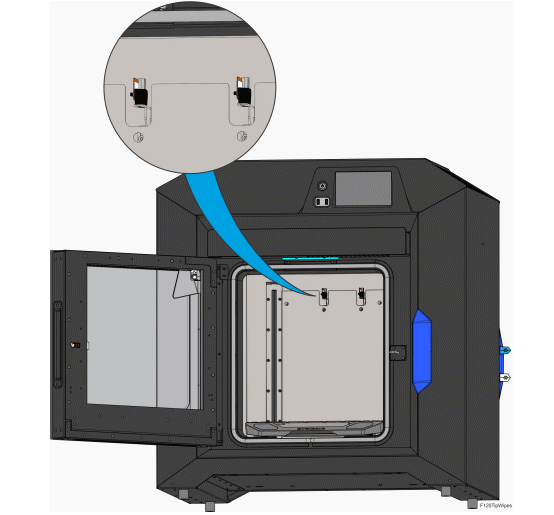

Figure 11: Tip Wipe Assembly Removal
4.Repeat step 3 above to remove the support side tip wipe assembly.
|
|
If the head is positioned above the purge area it may impede your ability to remove the tip wipe assemblies. Open the top cover and manually move the head away from the purge area. |
5.Clean and inspect the surface around the locating pins. Make sure that the tip wipe assemblies can sit flush on the surface.
6.Inspect the flicker portion of the tip wipe assemblies. The top edge of the flicker should be straight and must not contain excessive notching/wear.
7.Inspect the brush portion of the tip wipe assemblies. Brush bristles must not show evidence of wear (i.e. no notches in bristle pattern) and should not contain significant bristle clumping. Frayed bristles are acceptable as long as the top edge is even across all of the bristles.
8.Replace one or both of the tip wipe assemblies if excessive wear is present. See Table 2 (page 9) for information on ordering replacement assemblies.
•The components of the assembly cannot be replaced individually. The entire tip wipe assembly (PN 123-00306) must be replaced if excessive wear is present on the flicker or the brush.
Figure 12: Tip Wipe Assembly Details
9.Reinstall the support side tip wipe assembly by placing the assembly onto its locating pins and sliding the assembly downward.
10.Repeat step 9 above to reinstall the model side tip wipe assembly.
Cleaning the Exterior Surface of the Printer
The printer’s exterior surfaces (doors and panels) may accumulate dust and periodically require cleaning. Exterior doors and panels, with the exception of the touchscreen display, can be cleaned using a slightly damp microfiber cloth (supplied in the Welcome Kit). The cloth should be only slightly damp to ensure that water does not enter the printer. Excess water can cause damage to interior components.
Cleaning the Touchscreen Display
|
|
Caution: Using a cleaner which contains ammonia and/or alcohol can damage the touchscreen. Only a suitable LCD cleaning solution and microfiber cloth (included in the Welcome Kit) should be used to clean the touchscreen display. |
As needed, to remove smudge marks and buildup, clean the touchscreen display using the LCD cleaner and microfiber cloth provided in the Welcome Kit.
Apply an adequate amount of LCD cleaning solution to the provided microfiber cloth and then gently wipe the exterior surface of the touchscreen display to clean its surface. It is recommended that you apply LCD cleaner to the microfiber cloth rather than applying cleaner directly to the touchscreen display, as excess moisture may damage the display.
Inspecting and cleaning the tip shields
The tip shields may accumulate purged material or debris. As required, this material can be removed by manually wiping the tip shields with a clean cloth.
Cleaning the Oven Door glass Surfaces
Required Tools
•2.5 mm hex wrench
Accessing the Oven Door Glass
1.Power off the printer. See “Powering Off” (page 15).
2.Allow the oven to cool.
3.Open the oven door.
4.Using a 2.5 mm hex wrench, remove the inside door panel mounting screws (11). See Figure 40 (page 43).

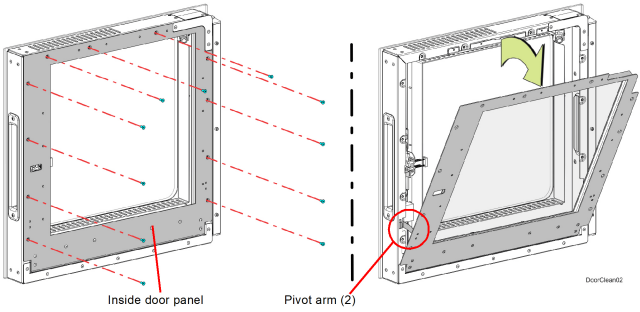

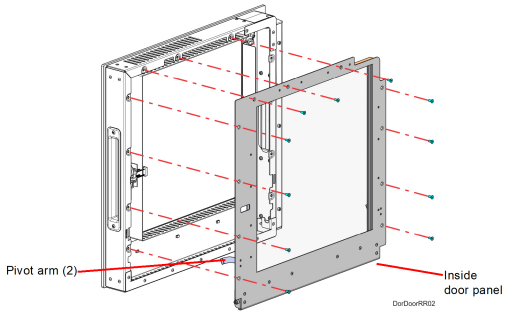

Figure 13: Inside door panel mounting screw locations

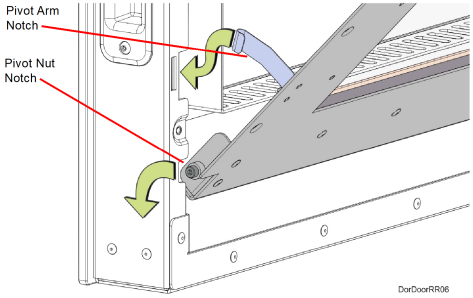

5.Pivot the inside door panel away from the door assembly. The pivot arms will prevent the door panel from fully separating. See Figure 13.
6.Clean the glass surfaces with a commercial glass cleaner.
Installing the Door Panel
1.Push the top of the door panel toward the door assembly.
2.Close the door panel and make sure that the panel and frame mounting holes are aligned.
3.Using a 2.5 mm hex wrench, install the inside door panel mounting screws (11). See Figure 13.
|
|
Do not over-tighten the inside door panel mounting screws. |
4.Close the oven door.
The following service procedures outline the replacement instructions for the customer replaceable units of the F120 printer.
|
|
Warning: Electrical Shock Hazard. Power OFF the printer and disconnect the power cord before replacing any of the customer replacement units. |
1.Depress the blue ON/OFF power button.

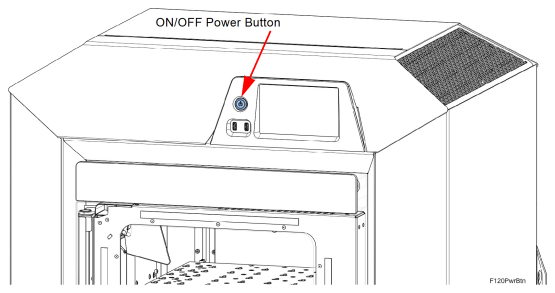

Figure 14: ON/OFF power button location
2.Press Accept on the touchscreen display.Wait approximately 25 seconds for the printer to power down.
3.Remove the AC power cord from the rear of the system.

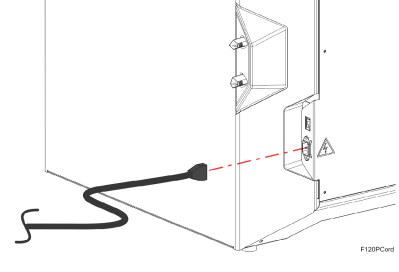

Figure 15: AC power cord location
Required Tools
•3 mm hex wrench
|
|
Note: Removal of the rear panel requires the removal of the AC power cord. Do not install the AC power cord with the back panel removed. |
1.Power OFF the printer, see “Powering Off” (page 15).
2.If present, disconnect the network cable from the Ethernet port.
3.Using a 3 mm hex wrench, remove the rear panel mounting screws (10). See Figure 16 (page 17).

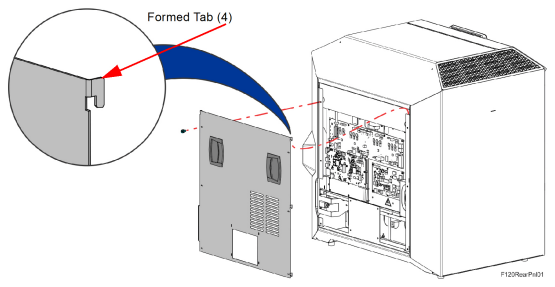

4.The rear panel has formed tabs that allow it to hang on the printer frame. Remove the rear panel by lifting upward and pulling away from the printer.

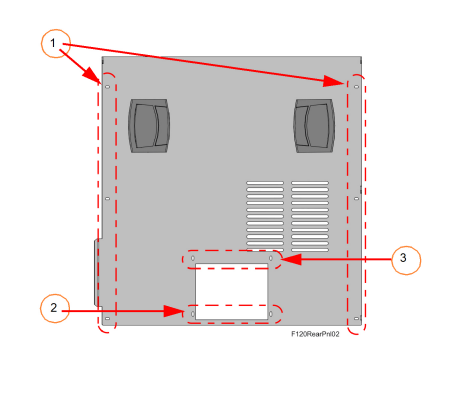

Figure 16: Rear Panel Mounting Screws
1.Insert the rear panel formed tabs into the slots in the side and cover panels. See Figure 16 (page 17).
2.Align the rear panel with the mounting holes in the frame. See Figure 16 (page 17).
3.Using a 3 mm hex wrench, loosely install the rear panel mounting screws (10). See Figure 16 (page 17).
4.Tighten the rear panel mounting screws (10) in the order shown in Figure 17 (page 18). Torque to 21 in-lbs.
Figure 17: Rear Panel Screw Installation Order
5.Tighten the rear panel mounting screws (16).
Required Tools
•3 mm hex wrench
1.Power OFF the printer, see “Powering Off” (page 15).
2.Remove the rear panel. See “Removing the Rear Panel” (page 17).
3.Open the oven door to release the top cover latch.
4.Open the top cover.
5.Using a 3 mm hex wrench, remove the side panel mounting screws (2). See Figure 18 (page 19).
6.Press and hold down the side panel retaining slot on the cover support bracket. See Figure 18 (page 19).

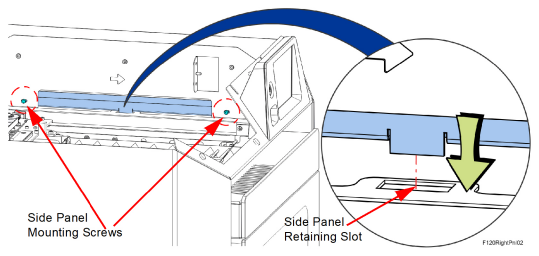

Figure 18: Side Panel Mounting Screw Locations (right side panel shown)
7.While holding down the retaining slot on the cover support bracket, tilt and lift the side panels off the retaining pins (3) at the base of the oven frame. See Figure 19 (page 20).

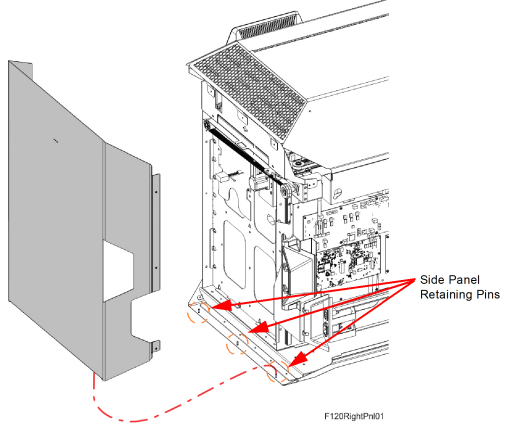

Figure 19: Side Panel Retaining Pins Detail (right side panel shown)
8.Remove the side panel from the printer.
1.Install the side panel to the retaining pins (3) at the base of the printer frame. See Figure 19 (page 20).
2.Align the mounting holes (2) in the side panel’s welded channel with the holes in the printer frame. Make sure that the tab at the bottom of the channel engages the side panel retaining slot. See Figure 18 (page 19).
3.Use a 3 mm hex wrench to reinstall the mounting screws (2). Torque to 21 in-lbs. See Figure 19 (page 20).
4.Close the top cover.
5.Install the rear panel. See “Installing the Rear Panel” (page 17).
Right and Left Side Louver Panels
|
|
Note: The following procedure describes and depicts replacement of the right side louver panel only. The left side louver panel replacement procedure is identical to the right side panel replacement procedure except that the left side panel must be removed for access. |
Required Tools
•3mm hex wrench
1.Power OFF the printer. See Powering Off on page 5-5.
2.Remove the rear panel. See “Removing the Rear Panel” (page 17).
3.Remove the right side panel. See “Removing the Side Panels” (page 18).
4.Using a 3 mm hex wrench, remove the right side louver panel mounting screws (3) that secure the louver panel to the cover support bracket. See Figure 20 (page 21).
5.Using a 3 mm hex wrench, remove the right side louver panel mounting screws (2) that secure the louver panel to the cover buttress. See Figure 20 (page 21).
6.Gently pull the louver panel away from printer until the formed bracket disengages from the rear cover standoff fastener. See Figure 20 (page 21).

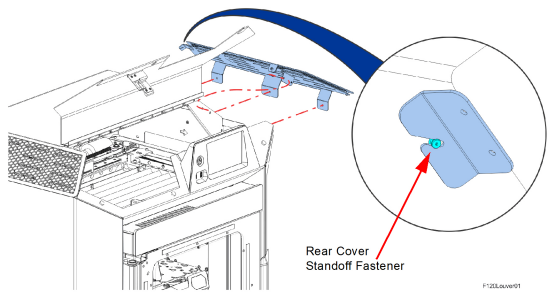

Figure 20: Louver Panel Location (Right Side Shown)
7.Remove the louver panel from the printer.
1.Engage the slotted mounting bracket of the louver panel with the rear cover standoff fastener.
2.Align the louver panel mounting holes (2) with the holes in the cover buttress.
3.Use a 3 mm hex wrench to reinstall the mounting screws (2) that secure the louver panel to the cover buttress. Torque to 21 in-lbs. See Figure 20 (page 21).
4.Use a 3 mm hex wrench to reinstall the louver panel mounting screws (3) that secure the louver panel to the cover support bracket. See Figure 20 (page 21). Torque to 30 in-lbs.
5.Install the right side panel. See “Installing the Side Panels” (page 20).
6.Install the rear panel. See Installing the Rear Panel on page 5-7.
Required Tools
•3mm hex wrench
•5 mm hex wrench
1.Power off the printer. See “Powering OFF the Printer” (page 15).
2.Remove the rear panel. See “Removing the Rear Panel” (page 17)
3.Remove the right and left side panels. See “Removing the Side Panels” (page 18).
4.Remove the right and left side louver panels. See “Removing the Louver Panels” (page 21).
5.Using a 5 mm hex wrench, remove the screws (2) that secure the back cover to the top of the printer frame.
6.Open the oven door to release the top cover latch.
7.Open the front top cover.
8.Using a 3 mm hex wrench, remove the screws (4) that secure the cover assembly buttresses to the left and right side support brackets. See Figure 21 (page 23).

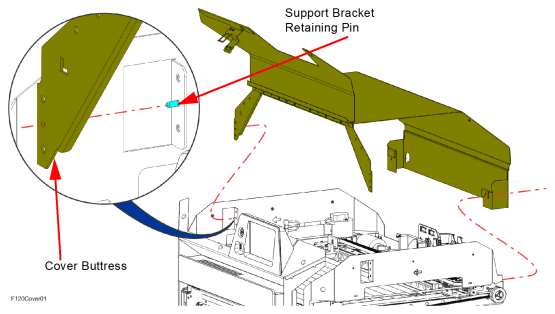

9.While holding the front cover open, gently disengage the cover buttresses from the retaining pins on the left and right side support brackets. See Figure 21 (page 23).
10.Lift and remove the cover assembly from the printer.
Figure 21: Top cover mounting screw locations

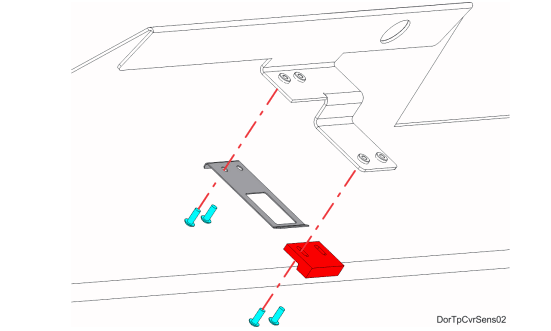

1.Transfer the latch, sensor actuator and mounting hardware from the old front cover to the new cover assembly.
|
|
Note: Install the sensor actuator so that it is biased toward the cover sensor inside the printer gantry. |
2. While holding open the front cover, loosely install the cover assembly to the top of the printer so that the buttresses engage the retaining pins on the left and right side support brackets. See Figure 21 (page 23).
3.Using a 3 mm hex wrench, tighten the screws (4) that secure the cover assembly buttresses to the left and right side support brackets. See Figure 21 (page 23).
4.Using a 5 mm hex wrench, tighten the screws (2) that secure the back cover to the top of the printer frame. See Figure 21 (page 23).
5.Install the right and left side louver panels. See “Installing the Louver Panels” (page 22).
6.Install the right and left side panels. See “Installing the Side Panels” (page 20).
7.Install the rear panel. See “Installing the Rear Panel” (page 17).
8.Close the top cover.
Required Tools
•3mm hex wrench
Removing the 3.3/5/12 VDC ATX Power Supply
1.Power OFF the printer, see “Powering Off” (page 15).
2.Remove the rear panel, see “Removing the Rear Panel” (page 17).
3.Remove the right side panel, see “Removing the Side Panels” (page 18)
4.Disconnect the input power cable from the power supply.
5.Disconnect the power supply cables from the I/O board (J16, J19, J20, J29).
6.Using a 3mm hex wrench, remove the power supply bracket mounting screw. See Figure 22.
7.Pivot and lift the bracket slightly to remove the power supply from the electronics bay.
8.Remove the power supply from the bracket.

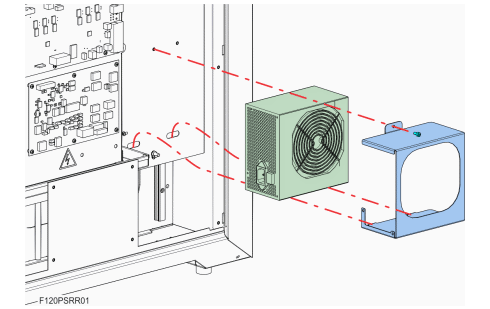

Figure 22: 3.3/5/12 VDC ATX Power Supply Mounting Location
Installing the 3.3/5/12 VDC ATX Power Supply
1.Transfer the mounting bracket to the new power supply.
2.Insert the bottom tabs of the power supply bracket into the slotted holes of the electronics bay panel. Pivot the power supply to its mounting orientation.
3.Use a 3mm hex wrench to reinstall the single mounting screw on top of the power supply bracket.
4.Connect the power supply cables to the I/O board (J16, J19, J20, J29).
5.Reconnect the input power cable to the 3.3/5/12 VDC ATX power supply.
6.Make sure that the switch on the power supply is in the ON position.
7.Reinstall the right side panel. See “Installing the Side Panels” (page 20)
8.Reinstall the rear panel. See “Installing the Rear Panel” (page 17).
Required Tools
•3 mm hex wrench

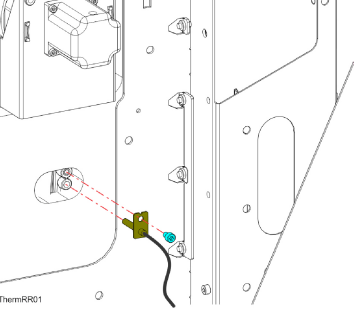

Removing the Oven Thermistor
1.Power OFF the printer. See “Powering Off” (page 15).
2.Remove the rear panel. See “Removing the Rear Panel” (page 17).
3.Remove the right side panel. See “Removing the Side Panels” (page 18).
4.Disconnect the thermistor cable from the I/O board (J36).
5.Use a 3mm hex wrench to remove the mounting screw (1) that secures the thermistor to the oven wall. See Figure 23.
6.Remove the thermistor from the printer. See Figure 23.
Installing the Oven Thermistor
1.Align the oven thermistor with its mounting location and use a 3 mm hex wrench to reinstall the mounting screw (1). See Figure 23.
2.Route the oven thermistor wire through the printer and reconnect it to the I/O board (J36).
3.Reinstall the right side panel. See “Installing the Side Panels” (page 20).
4.Reinstall the rear panel. See “Installing the Rear Panel” (page 17).
When a head reaches the 1500 build hour odometer limit, a warning will be displayed on the User Interface and the head’s Head Status Icon will be highlighted in red on the Materials page. You can continue using a head which has exceeded its odometer limit, but it is highly recommended that you change the head as part quality will be unpredictable. See “Replacing a Head” (page 14) for instructions on replacing a head.
Required Tools
•3 mm hex wrench
Removing the Head Ribbon Cables
|
|
Note: Make sure to disconnect the head ribbon cables while the printer is powered ON to ensure that auto-calibration occurs after re-installation. |
1.With the printer powered ON, open the top cover.
2.Move the X bridge to the front of the gantry enclosure.
3.Disconnect the head ribbon cable connectors (2) from the tops of the material and support heads. See Figure 24 (page 27).
4.Power OFF the printer.
5.Remove the rear panel. See “Removing the Rear Panel” (page 17).
6.Disconnect the head ribbon cable connectors (2) from the I/O board (J6 and J7). See Figure 24.
Figure 24: Head Ribbon Cable Connections
7.Using a 3 mm hex wrench, remove the front ribbon cable bracket mounting screws (3) on the back of the toggle assembly. Retain the screws for re-installation. See Figure 25.

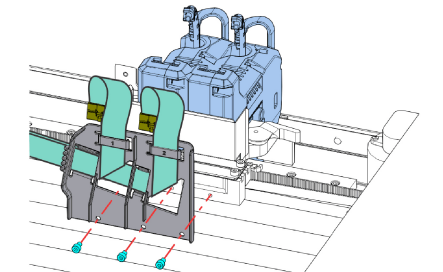

Figure 25: Front Ribbon Cable Bracket Mounting Screw Locations
8.Lift and disengage the rear ribbon cable bracket from the back, top of the printer frame. See Figure 26.

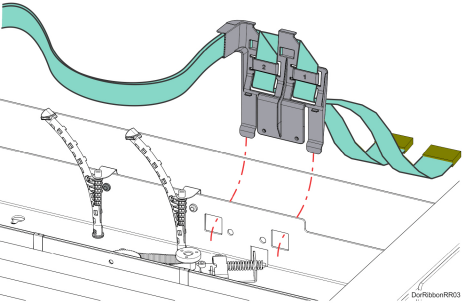

Figure 26: Rear Ribbon Cable Bracket Mounting Detail
9.Remove the head ribbon cables and cable brackets from the printer. See Figure 27.

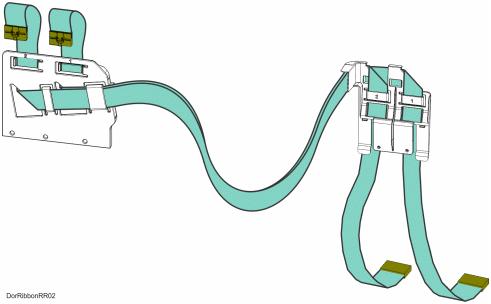

Figure 27: Head Ribbon Cables and Brackets
Installing the Head Ribbon Cables
1.Install the rear ribbon cable bracket to cutouts at the back, top of the printer frame. See Figure 26 (page 28).
2.Using a 3 mm hex wrench install the mounting screws (3) to fasten the front ribbon cable bracket to the back of the toggle assembly. See Figure 25 (page 27).
3.Connect the rear head ribbon cable connectors (2) to the I/O board (J6 and J7). See Figure 24 (page 27).
4.Connect the front head ribbon cable connectors (2) to the material and support heads. See Figure 24 (page 27).
5.Install the rear panel. See “Installing the Rear Panel” (page 17).
6.Close the top cover.
Required Tools
•T8 Torx wrench (included with spare part)
Removing the Touchscreen Display
|
|
Caution: The connectors and cables of the touchscreen display are fragile. Excessive force may cause damage to connector pins or wiring. |
1.Power OFF the printer. See “Powering Off” (page 15).
2.Using a T8 Torx wrench, remove the mounting screws (2) that secure the touchscreen to the display housing. Retain the mounting screws. See Figure 28 (page 30).

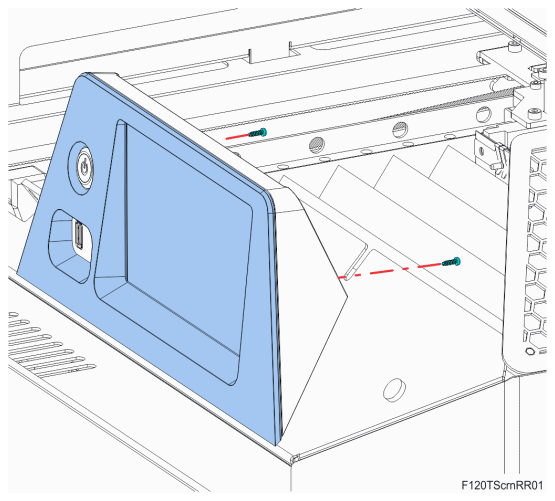

Figure 28: Touchscreen mounting screw locations
3.While supporting the touchscreen, tilt it away from the bracket to disconnect the grounding cable, touch extender cable and the flat display cable from the back of the display. Retain the nut and star washer. See Figure 29 (page 31).
|
|
Note: The flat display cable connector is fragile. Simultaneously pull both corners of the connector straight out, without rocking back and forth. |
4.Gently remove the touchscreen from the printer. See Figure 29 (page 31).

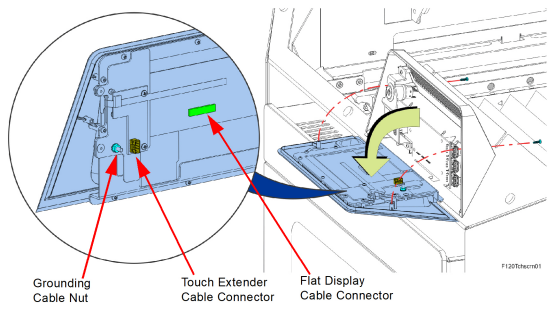

Figure 29: Touchscreen removal
Installing the Touchscreen Display
1.Reconnect the grounding cable, touch extender cable and the flat display cable to the back of the touchscreen display. See Figure 29 (page 31).
|
|
Note: Orient the shiny side of the connector away from the display. |
|
|
Note: The flat display cable connector is fragile. Simultaneously push both corners of the connector straight in, without rocking back and forth. |
2.Make sure that all cables are connected to the back of the touchscreen display. Tuck any excess cable behind the display.
3.Use a T8 Torx wrench, to reinstall the touchscreen mounting screws (2). See Figure 28 (page 30).
|
|
Note: Touchscreen calibration should be performed after proper touchscreen operation is confirmed. See “Touchscreen Calibration” (page 53). |
|
|
Caution: Do not over-tighten screws inside the plastic display housing. |
Right and Left Side Oven Blowers
Required Tools
•2.5 mm hex wrench
•3 mm hex wrench
1.Power OFF the printer. See “Powering OFF the Printer” (page 15).
2.Remove the rear panel. See “Removing the Rear Panel” (page 17).
3.Remove the side panels. See “Removing the Side Panels” (page 18).
4.Disconnect the oven blower motor connector from the I/O board (J39 - right blower, J37 - left blower).
|
|
Note: Take note of the wire routing configuration for ease of installation. |
5. Using a 3 mm hex wrench, remove the mounting screws (5) that secure the blower assembly to the oven frame, see Figure 30 (page 33).
6.Remove the blower assembly from the printer. See Figure 30 (page 33).
|
|
Note: Right side oven blower shown only. The left side blower procedure is identical to the right. |

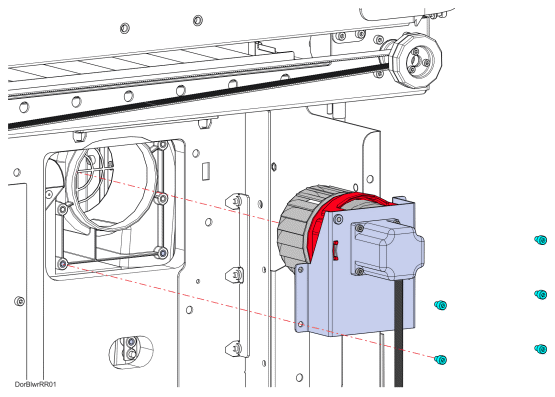

Figure 30: Right side blower assembly mounting screw locations
Installing Oven Blower Assembly
1.Using a 3 mm hex wrench, reinstall the blower assembly mounting screws (5). Torque to 13 in-lbs. See Figure 30 (page 33).
2.Make sure the blower motor cable is routed properly and secured with tie wraps.
3.Reconnect the fan blower motor cable connector to the I/O board (J39 - right blower, J37 - left blower).
4.Reinstall the side panels. See “Installing the Side Panels” (page 20).
5.Reinstall the rear panel. See “Installing the Rear Panel” (page 17).
Required Tools
•Screwdriver or similar instrument
Removing the Oven Door Gasket
1.Power OFF the printer. See “Powering Off” (page 15).
2.Open the oven door.
3.Extract the gasket pins out of the holes around the entrance to the oven enclosure. See Figure 31.
4.Pull the ends of the gasket out of the hole below the entrance to the oven enclosure. See Figure 31.
5.Remove the oven gasket from the printer.

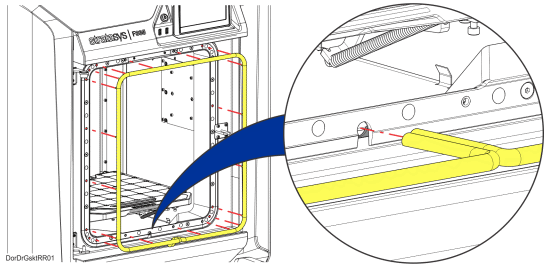

Figure 31: Oven Door Gasket Detail (door removed for clarity)
Installing the Oven Door Gasket
1.Insert the gasket pins into the holes around the perimeter of the entrance to the oven enclosure.
2.Use a screwdriver or similar instrument to poke the ends of the gasket into the hole below the entrance to the oven enclosure.
3.Close the oven door.
Required Tools
•3 mm hex wrench
•Small flat head screwdriver
1.Power OFF the Printer. See “Powering Off” (page 15).
2.Remove the top cover. See “Removing the Top Cover” (page 22).
3.From inside the gantry enclosure, Use a 3 mm hex wrench to loosen the Z motor mounting screws (4). See Figure 32.

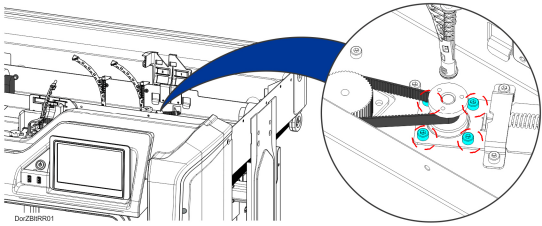

Figure 32: Z Motor Mounting Screw Locations
4.Using a small flat head screwdriver, relax the belt tension by gently prying the Z motor tension bracket away from the compression spring. See Figure 33.

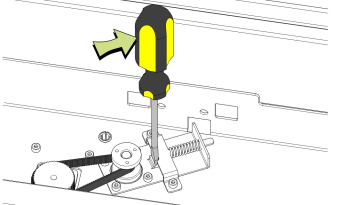

Figure 33: Relaxing Z Belt Tension
5.While the belt tension is relaxed, remove the Z drive belt from its pulleys and extract it from the printer.
1.Using a small flat head screwdriver, relax the belt tension by gently prying the Z motor tension bracket away from the compression spring. See Figure 33 (page 35).
2.Install the Z drive belt to the Z motor pulley.
3.Install the Z drive belt to the Z axis lead screw pulley.
4.Remove the flat head screwdriver from the tension bracket to restore proper tension to the Z belt.
5.Rotate the lead screw pulley two revolutions to align the Z drive belt on both pulleys.
6.Using a 3mm hex wrench, tighten the Z motor mounting screws (4). See Figure 32 (page 35).
7.Reinstall the top cover. See “Installing the Top Cover” (page 23).
8.Close the front top cover.
Required Tools
•3 mm hex wrench
1.Power OFF the printer.
2.Open the front top cover.
|
|
Move the X bridge as necessary to access Y bellows mounting clips and screws. |

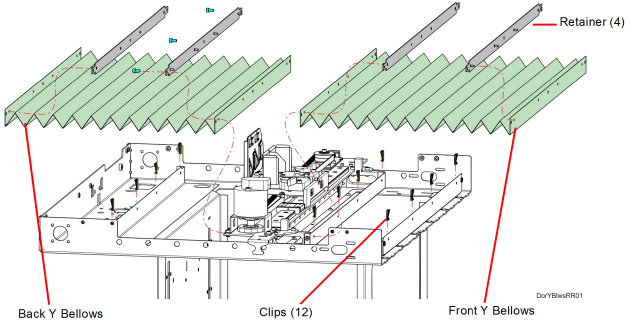

3.Remove the front Y bellows assembly. See Figure 34 (page 37).
a.Remove the clips (4) that secure the front bellows retainer to the front of the oven frame.
b.Remove the clips (4) that secure the front bellows retainer to the front of the X bridge assembly tray.
c.Remove the front Y bellows and retainers from the gantry enclosure.
d.Retain the Y bellows retainers for re-installation.
4.Remove the back Y bellows assembly. See Figure 34 (page 37).
a.Remove the clips (4) that secure the back bellows retainer to the rear of the oven frame.
b.Using a 3 mm hex wrench, remove the screws (3) that secure the back bellows retainer to the back of the X bridge assembly tray.
c.Remove the back Y bellows and retainers from the gantry enclosure.
d.Retain the Y bellows retainers for re-installation.
1.Transfer the Y bellows retainers to the new Y bellows.
2.Move the X bridge to the front of the gantry enclosure.
3.Install the front and rear clips (8) that secure the front Y bellows assembly to the X bridge and oven frame. See Figure 34.
4.Install the rear clips (4) that secure the back Y bellows assembly to the rear of the oven frame. See Figure 34.
5.Using a 3 mm hex wrench, install the screws (3) that secure the back bellows retainer to the back of the X bridge assembly tray. See Figure 34.
Required Tools
•3 mm hex wrench
•Small flathead screwdriver

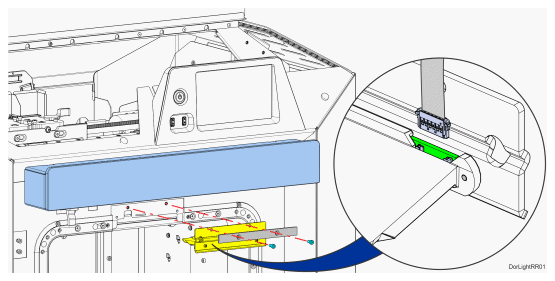

Removing the Oven Light
1.Power OFF the printer. See “Powering OFF the Printer” (page 15).
2.Open the oven door.
3.Remove the top gasket pins on both sides of the oven light above the oven enclosure. Temporarily displace the top of the oven door gasket to access the oven light.
4.From inside the front of the gantry, use a 3mm hex wrench to remove the screws (2) that secure the door box to the oven frame.
|
|
Note: The door box contains cables for the oven door and camera. Gently lift and support the door box to access the oven light mounting screws underneath. |

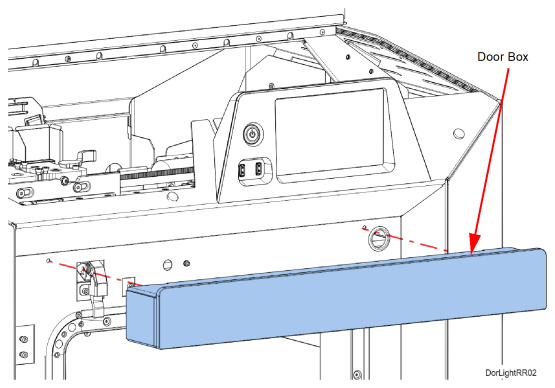

Figure 35: Door box mounting screw locations
5.While supporting the door box, use a 3mm hex wrench to remove the oven light mounting screws (2) and the retaining bracket. See Figure 36 (page 39).
6.Move the oven light out a small distance to access the oven light cable connector.
7.Disconnect the oven light cable connector and remove it from the printer. If necessary, use a small flathead screwdriver to disengage the cable connector tabs. See Figure 36 (page 39).
Installing the Oven Light
1.Connect the loose cable connector to the oven light. Orient the cable with the green wire toward the center of the light. See Figure 37 (page 40).

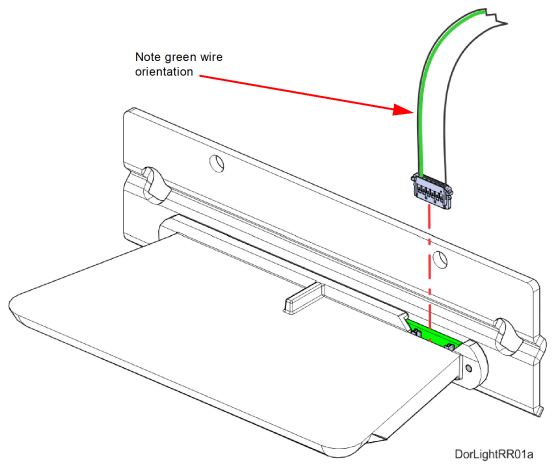

Figure 37: Oven light cable detail
2.Tuck the excess cable into the bezel opening and push the oven light into its mounting position. If necessary, pull the cable from inside the gantry to remove slack.
3.Insert the oven light into the opening above the oven enclosure.
4.Using a 3mm hex wrench, install the retaining bracket and oven light mounting screws (2). Torque to 21 in-lbs. See Figure 36 (page 39).
5.From inside the front of the gantry, use a 3mm hex wrench to reinstall the screws (2) that secure the door box to the oven frame.
6.Reinstall the top gasket pins on both sides of the oven light.
7.Close the oven door.
8.Power ON the printer.
Required Tools
•3 mm hex wrench
Removing the Oven Door Camera
|
|
Note: Do not touch the camera lens. If necessary, wipe the camera lens with a clean microfiber cloth. |
1.Power OFF the printer. See “Powering Off” (page 15).
2.Open the oven door.
3.Using a 3mm hex wrench, remove the camera assembly mounting screw (1) through the hole in the top of the oven door. See Figure 38 (page 41).
4.Gently move the camera assembly out a small distance and disconnect the cable on the back of the camera.
5.Remove the camera assembly from printer. See Figure 38.

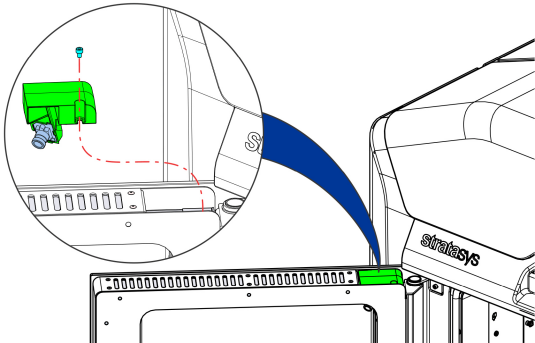

Figure 38: Camera Assembly Mounting Screw Location
6.Carefully remove the camera from the mounting bracket. Retain the mounting bracket. See Figure 39.
Installing the Oven Door Camera
|
|
Note: Do not touch the camera lens. If necessary, wipe the camera lens with a clean microfiber cloth. |

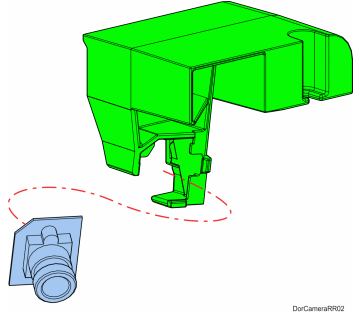

1.Install the camera to the mounting bracket. See Figure 39 (page 42).
2.Connect the camera cable to the connector on the back of the camera.
3.Using a 3mm hex wrench, install the mounting screw through the hole in the top of the oven door to secure the camera assembly. See Figure 38 (page 41).
Required Tools
•2.5 mm hex wrench
•4 mm socket wrench
1.Power off the printer. See “Powering Off” (page 15).
2.Open the oven door.
3.Using a 2.5 mm hex wrench, remove the inside door panel mounting screws (11). See Figure 40.
4.Pivot and remove the inside door panel from the door assembly. Gently press on the pivot arms to disengage them from the door assembly. See Figure 40.
Figure 40: Inside door panel mounting screw locations
5.Disconnect the door latch assembly solenoid cable connector.
6.Disconnect the door latch assembly sensor cable connectors (2).
7.Using a 4 mm socket wrench, remove the door latch assembly mounting nuts (2). See Figure 41.
8.Remove the door latch assembly from the oven door. See Figure 41.

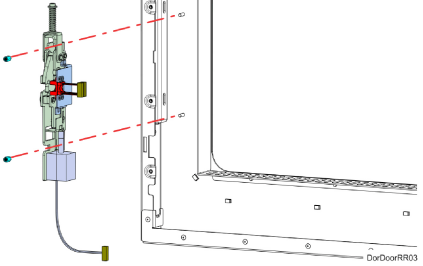

Figure 41: Door latch assembly mounting nut locations
9.Using a 2.5 mm hex wrench, remove the sensor bracket mounting screws (2). See Figure 42.
10.Remove the sensor and bracket from the latch assembly and retain them for re-installation. See Figure 42.
Figure 42: Door latch sensor mounting bracket detail
Installing the Oven Door Latch
1.Using a 2.5 mm hex wrench, install the sensor bracket mounting screws (2) to secure the sensor mounting bracket to the oven door latch assembly. See Figure 42 (page 44).
2.Using a 4 mm socket wrench, install the door latch assembly mounting nuts (2) to secure the door latch assembly inside the oven door assembly. See Figure 41 (page 43).
3.Connect the door latch assembly sensor cable connectors (2).
4.Install the inside door panel into the door assembly. See Figure 43.
a.Angle the inside door panel slightly and insert the pivot nuts into the lower notches on both sides of the door frame.
b.Gently press down on the door panel until the pivot nuts are fully seated inside the door frame.
c.Rotate the top of door panel toward the door assembly. Gently press in the pivot arms to insert them into the upper notches on both sides of the door frame.
d.Close the door panel and make sure that the panel and frame mounting holes are aligned.
Figure 43: Inside oven door panel detail
5.Using a 2.5 mm hex wrench, install the inside door panel mounting screws (11). See Figure 40 (page 43).
6.Close the oven door.
Top Cover Interlock Sensor and Actuator
Required Tools
•2 mm hex wrench
•2.5 mm hex wrench

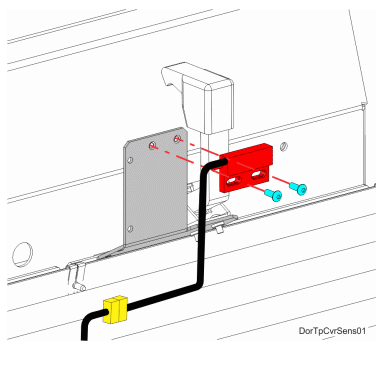

Removing Top Cover Interlock Sensor
1.Power OFF the printer. See “Powering Off” (page 15).
2.Open the front top cover.
3.Disconnect the top cover sensor cable at the quick disconnect.
4.Remove the three cable ties that secure the cable to the sensor mounting bracket.
5.Use a 2 mm hex wrench to remove the sensor mounting screws (2). See Figure 44.
6.Remove the top cover sensor from the mounting bracket.
Figure 44: Top Cover Sensor Mounting Screw Locations
7.Use a 2.5 mm hex wrench to remove the top cover actuator mounting screws (2). See Figure 45 (page 47).
8.Remove the top cover actuator.
Figure 45: Top Cover Actuator Mounting Screw Locations
Installing the Top Cover Interlock Sensor
1.Use a 2 mm hex wrench to reinstall the mounting screws (2) that secure the interlock sensor to the mounting bracket. See Figure 44 (page 46).
2.Reconnect the top cover sensor cable at the quick disconnect connector.
3.Install three cable ties to secure the sensor cable to the mounting bracket.
4.Use a 2.5 mm hex wrench to reinstall the mounting screws (2) that secure the interlock actuator to the top cover. See Figure 45.
5.Close the top cover.
6.Power ON the printer.
7.Verify operation by opening and closing the top cover.
8.If the touchscreen displays errors indicating that the cover is not closed, adjust the position of the actuator.
