Removing Models After Printing
After printing models, you should allow them to cool as much as possible before handling them. If additional models do not have to be produced on the printer, it is best to let the printed models cool in the printer, with the cover closed, as long as possible.
Removing the Build Tray From the Printer
The build tray for the Objet1000 Plus printer is removable, which aids in the handling of printed models. You use a special cart to remove the build tray and transfer it to the cleaning station.
To remove the build tray:
| 1. | Press . or— From the Options menu, select . |
The print block moves forward and the build tray lowers.
| 2. | Raise the cart’s platform and position the docking guides as shown. |

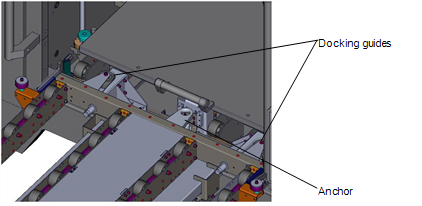

Positioning the cart for tray removal
Note: Make sure that the anchor on the platform is raised above the docking pin on the printer.
| 3. | Lower the cart platform so that the anchor fits over the docking pin. |

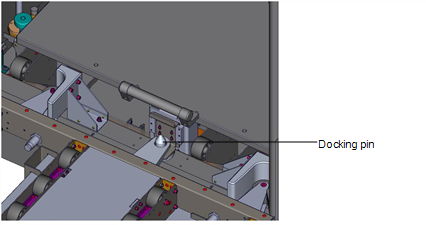

Securing the cart to the printer
| 4. | Pull the build tray onto the cart. |
| 5. | Raise the cart’s platform to release it from the docking pin. |
You can now move the cart to the cleaning area.
