Printer Interface Color Key

The background colors in the printer indicator fields tell you at a glance whether or not the value or item is suitable or ready for printing.

•   Green—suitable/ready for printing

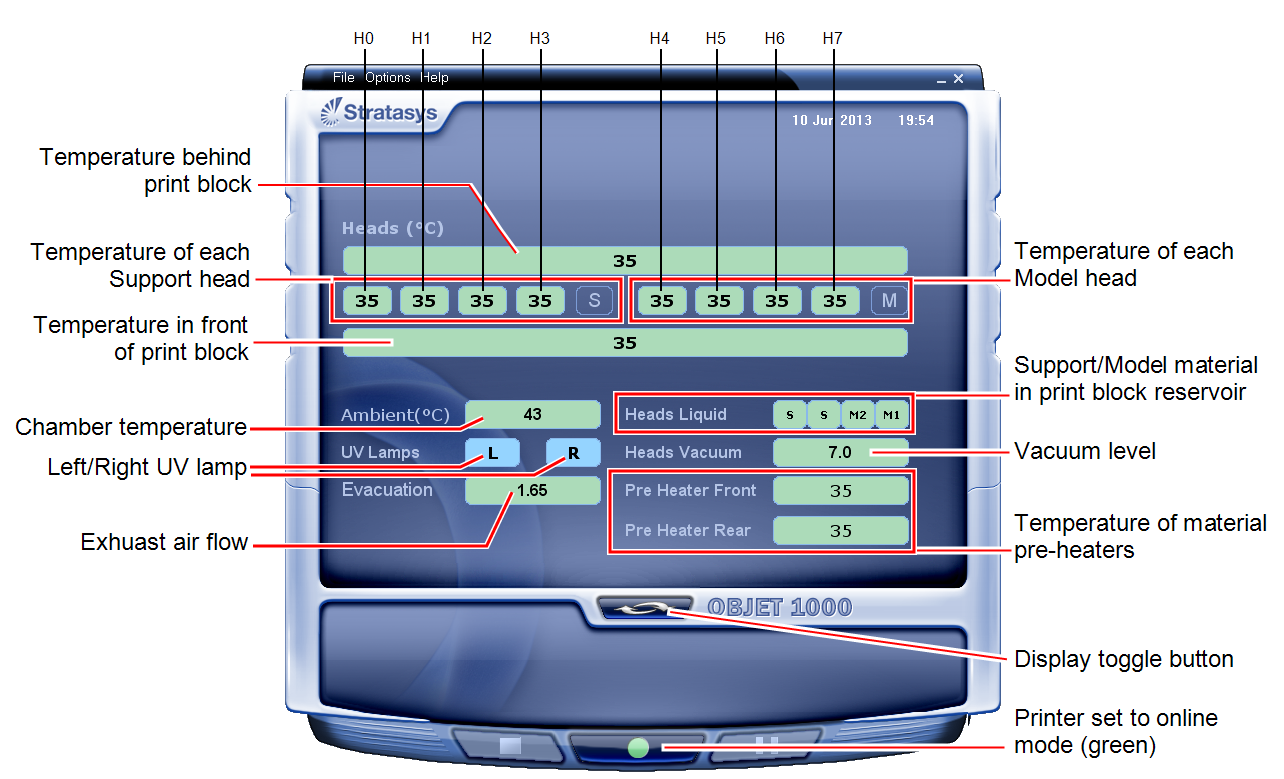

For example, in the printer interface screen (see below):

❒   Heads Liquid—The level of Model and Support material in the print‑block reservoir is OK.
❒   Heads Vacuum—The vacuum level in the system is within the acceptable range.
❒   Evacuation—The flow of exhaust air from the printer is OK.
❒   Pre-Heater—The Model and Support resins need to be heated before being supplied to the print block. The temperature has reached the acceptable range.
•   Red—not suitable for printing (or indicates a warning)

For example, in the printer interface screen (see below):

❒   Ambient—The ambient temperature of the printing chamber is not within the acceptable range.
•   Blue—not ready

For example, in the printer interface screen (see below):

❒   UV lamps—The UV lamps are not on.
❒   Heads (°C)—The heads have not reached the temperature required for printing models (in printing mode).
❒   Pre-Heater—The Model and Support resins need to be heated before being supplied to the print block. The temperature has not yet reached the acceptable range.

The color of the material containers displayed in the printer interface indicates which containers are active for the current (or next) print job.

For example, in the printer interface screen:

•   Blue—active container
•   Gray—reserve container
