OpenGL Driver Configuration

The OpenGL driver displays 3D graphics on your screen. There is normally no reason to adjust its settings. If you suspect a problem with the way Objet Studio displays objects, you can use the OpenGL Driver Configuration tool to check and configure the driver settings.

To access the OpenGL Driver Configuration dialog box:
1.   From the Tools menu, select Options.

or—

In the Objet Studio Commands menu , click Options.

2.   In the Options dialog box, display the Troubleshooting tab.

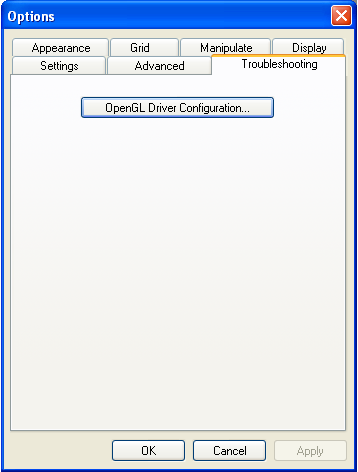

Access to OpenGL Driver configuration

The Troubleshooting tab is only accessible when Professional Mode is active (see Professional Mode Features).
3.   Click OpenGL Driver Configuration.

The dialog box that opens displays details of the pixel format ID (index) for the window and the memory.

OpenGL Driver Configuration dialog box

If you want to display the values and change them, click . Alternately, you can select Choose Format and change the values in this dialog box.

To perform a test of the driver configuration and enter the suggested pixel format ID:
1.   Select Choose Format.
2.   Click Test.

Objet Studio returns the recommended pixel format ID.

Recommended pixel format ID

3.   Click OK.
4.   In the OpenGL Driver Configuration dialog box, select Pixel Format ID and enter this number.
5.   Click Apply.
6.   Display the other pixel format tab, and repeat this procedure.
