Safety Features
Interlock Switch
The power supplied to the UV lamp and the motion motors is turned off when the doors are opened.
Warning
Do not defeat (override) the interlock switch. Doing so could result in serious personal injury. If the interlock switch does not function correctly, do not use the printer, and contact your service provider.
Safety Lock
The doors are locked while the printer is working. The lock is released when the printer reverts to pause or stop mode.
Warning
Do not defeat (override) the safety lock. Doing so could result in serious personal injury. If the safety lock does not function correctly, do not use the printer, and contact your service provider.
UV Screening
The transparent section of the doors blocks harmful UV radiation, allowing the operator to view the model as it is being made.
Circuit Breaker
The power to the printer is turned off in case of electrical overcurrent.
Note: The circuit breaker is only accessible to service personnel.
UV-Lamp Overheating Protection
The power supplied to the UV lamp and the motion motors is turned off if the temperature around the lamp reaches 90°C (194°F). A label on the UV-lamp cover indicates if the temperature has exceeded 65°C (150°F).
Grounded Chassis
The chassis of the printer is grounded, to prevent electrical shock.
Note: The power outlet must be properly grounded, in accordance with the local electric code, to provide this protection.
Emergency Stop
Emergency stop switches are located on the front and back of the printer.
Important: Pushing the emergency stop switch disconnects power to the motors only. This switch does not disconnect the power supply to the printer; printer circuits remain live.

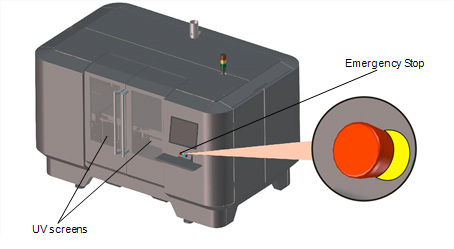

Objet1000 Plus—front view

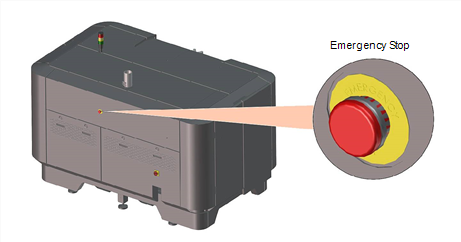

Objet1000 Plus—rear view
If the printer is not used as specified in this guide, these safety features may not provide adequate protection.
