Backing up the Printer Configuration

It is recommended that you periodically back up the printer's configuration files. In case of printer malfunction or the need to re-install the software on the printer computer, parameters can be restored from the backup. The backup also saves the printer's log and the calibration and maintenance history.

To back up the printer configuration files:

1.

From the Options menu, select Collect Service Data.

or—

Press F2.

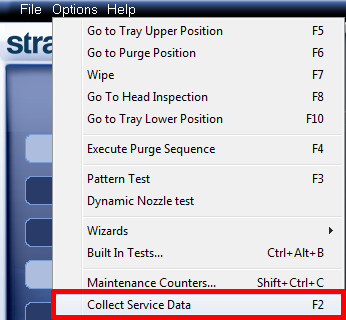

Selecting Collect Service Data from the Options menu

2.

In the confirmation dialog box, click Yes.

A zip file is saved in this folder—
\STRATASYS_J8_SERIES\ServiceData

3.

Copy this file to a location that is not on the printer computer (for example, a network folder or a USB drive).
