Saving the Screen Display as an Image File

You can save the image displayed in the active viewing screen as a graphic file.

To save the screen display as an image:
1.   Press Ctrl+B.

or—

From the Objet Studio Commands menu , select Save Bitmap.

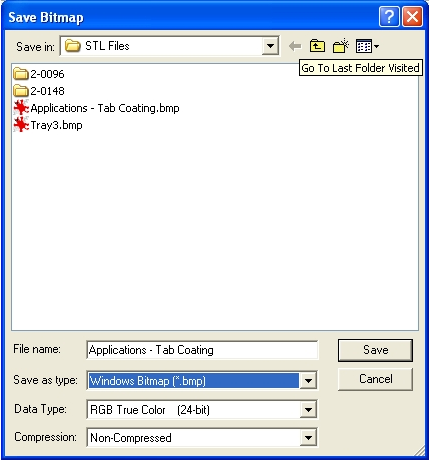

The Save Bitmap dialog box opens.

2.   At the top of the dialog box, select the appropriate folder.
3.   At the bottom of the dialog box, enter a file name.
4.   Open the Save as type drop-down list, and select the file format.
5.   Click Save.
