Large File Manipulation
If you need to work with a detailed model that is composed of a large number of polygons, you can speed up its display and manipulation in Objet Studio by reducing the number of polygons on the screen. Although this may reduce the resolution on the screen, it has no affect on the printed models.
Object displayed without polygon reduction
Object displayed with only five percent of its polygons showing
To use polygon reduction:
|
1.
|
From the Tools menu, select Options. |
or—
From the Objet Studio Commands menu
, click Options.
|
2.
|
In the Options dialog box, display the Display tab. |

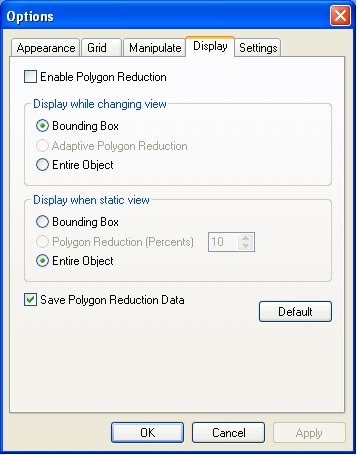

Options dialog box, Display tab
|
3.
|
Select Enable Polygon Reduction. |
|
4.
|
Select Polygon Reduction (Percent). |
|
5.
|
Enter the percentage of total polygons to display. |
When you click Apply, the display changes.
Note: The setting affects the static display (when the object is not being moved).
|
6.
|
Set display options when the object is being moved (Display while changing view): |
|
•
|
Bounding Box—A box representing the object’s maximum dimensions is displayed. |
|
•
|
Adaptive Polygon Reduction—Varying degrees of polygon reduction are applied, as necessary. |
|
•
|
Entire Object—No polygon reduction is applied.
|
|
7.
|
To save these settings, so that they will be applied every time you place this object on the build tray, click Save Polygon Reduction Data. |
|
8.
|
Click Apply to see the results of the settings without closing the dialog box. |
Selecting the Entire Object option cancels polygon reduction.
