Opening Objet Tray Files
You can open trays that were saved as objtf files. (Saving objtf files is described in Saving Build Trays).
To place an object saved as an Objet Tray File (objtf) file on the build tray:
| 1. | From the File group, click  . |
or—
From the Objet Studio Commands menu
, select .
The Open dialog box is displayed.

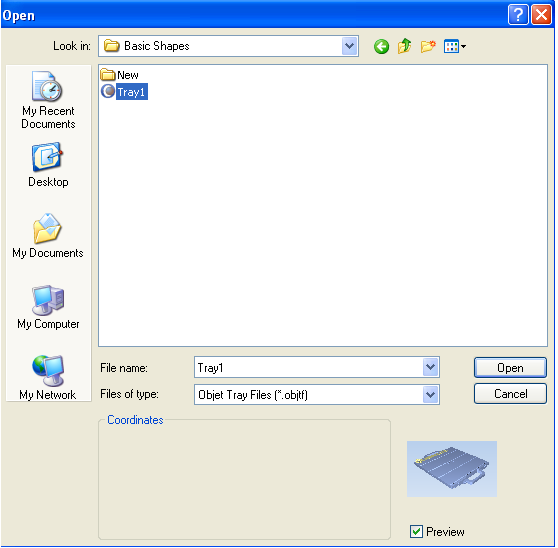

Objet Tray File Open dialog box
| 2. | Select the desired file, and make sure that it appears in the File name field. |
If the Preview check box is selected, the object is displayed.
| 3. | Click . |
Objet Studio opens the tray file.
The objtf file is actually a file containing instructions for printing—which stl files to print and their position on the build tray. Because the objtf file references the stl files used, they must remain in the same file location as when the objtf file was saved.
