Objet Studio Interface

When Objet Studio opens, the Tray Settings screen appears, showing an empty build tray.

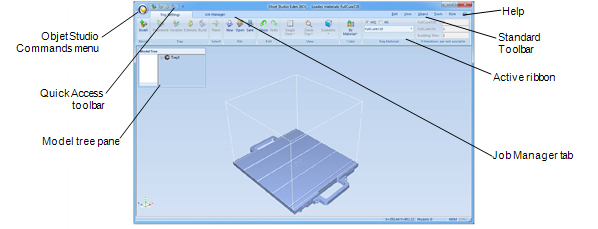

Objet Studio opening screen

The Objet Studio interface consists of two main screens:

•   Tray Settings—for arranging models and preparing them for printing.
•   Job Manager—for monitoring and managing print jobs.

This screen is described in Monitoring and Managing Print Jobs.

Each screen is controlled by menus and icons on its own ribbon. An additional ribbon, Model Settings, displays controls for configuring and manipulating selected models.

Objet Studio anticipates your workflow by displaying and enabling the options relevant to your current task. For example, when you first open Objet Studio, the Model Settings ribbon is disabled until you place a model on the build tray. Similarly, options available from the standard toolbar menus are enabled or disabled to match the current workflow.

The ribbon, colors used, and several other interface features can be customized. How to change the appearance of the interface is explained in Customizing Objet Studio.

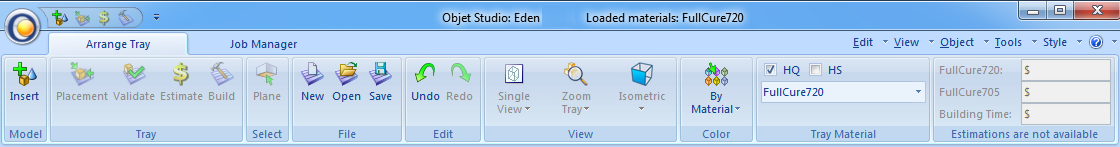

Tray Settings ribbon

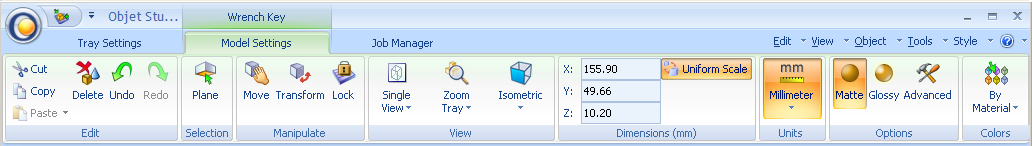

Model Settings ribbon
